Trekking Kit 250-1500W MXUS 30H
- Conversion kit 1500W bike. Perfect for driving in slightly mountainous terrain. Original motor MXUS XF40 30H. Perfect for mounting on a trekking or cross bike.
Gain a discount when buying products from the collection
In collection
Trekking kit 1500W MXUS 30H
The kit will turn your bike into a 1500W electric bike. Perfect for driving in slightly mountainous terrain.
An electric bike is the cheapest form of transport. How much will it cost you to ride 100 kilometers on an electric bike? Taking into account the average wear of elements, battery durability and electricity prices, the rate for such a distance will be ... about 0,2EUR.
POWER ADJUSTMENT
POWER AND SPEED LIMITER
FAILURE-FREE CONTROLLER

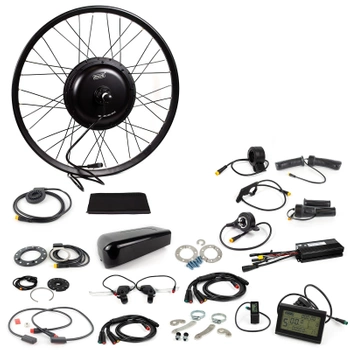

What is included in the ready set?
ELECTRIC MOTOR MXUS 30H
Our sets are equipped with Mxus motors - the best HUB type gearless motors in Poland. Mxus is one of the largest manufacturers of electric motors. They are characterized by high quality and reliability. Many years of experience mean that we can honestly recommend these motors. The great advantage is the possibility of quick assembly and disassembly of the wheel, thanks to the hermetic plug in the engine.
Only with us you can choose the motor winding: 8x8, 10x6 and 12x5
You do not know which winding to choose? We encourage you to familiarize yourself with the speed calculator
Which winding is right for you?
7x9 - Motor with the lowest top speed but the highest torque (force). If you live in a mountainous or very hilly area, if you ride off-road on routes with a lot of elevation gain or if you are towing a bicycle trailer or your bike is heavier than typical bicycles, then such an engine is for you. It also allows (at a speed of about 25 km/h) maximum range, because it makes the best use of the stored energy. However, all this is paid for with a lower maximum speed, so usually such a motor is not chosen if the terrain on which you intend to drive is flat or slightly hilly - too low speed on straight asphalt or gravel sections will annoy you.
8x8 - Motor with reduced maximum speed but increased efficiency. It has high torque, provides the most efficient ride with the lowest energy consumption. Suitable for people for whom the maximum speed is not important (or even not wanted), but who see strength (torque) as the main advantage of their design. It is best suited to structures built with strength, efficiency and range in mind.
10x6 - Intermediate motor, has a higher maximum speed at the cost of lower torque (force). Provides faster driving for people who value high speed. It is weaker, provides a few% less range, and will work worse under a loaded mountain ride. This model finds particular interest in trekking, gravel, expedition, cross and other road structures.
12x5 - The motor with the highest maximum speed and also the weakest of the 30H models. This is the drive most commonly used for bicycles with 20/24 "wheels. The use of such an motor means that quite small wheels can accelerate the structure (thanks to the high speed of the engine) to a reasonable maximum speed. This motor model is usually not used for 26-28" wheels. Unless we consciously build a structure that only under ideal conditions on a flat road should accelerate to particularly high maximum speeds.
RIM
The set includes a reinforced rim for a V-brake and Disc. Available in sizes: 20", 24", 26 ", 27.5" and 28/29"
Reinforced, riveted, chambered aluminum rim, black.
Intended for use in electric bikes. It works well in city vehicles as well as for less demanding off-road driving.
SPOKES
2.5mm black spokes with silver nipples.
LACING
After purchase, you will receive a laced and centered wheel ready to be mounted in the bicycle frame.
Remember that even the best laced wheel requires check the spokes after driving a certain distance. Usually, the first tightening of the spokes is carried out after the first 50-200 km depending on the driving style. If the spokes are starting to rattle, it is a sign that they are on the wheel and should be finally correct.
CONTROLLER
Sinewave controller compared to classic squarewave controllers allows for a smoother ride, reduces energy consumption and makes the motor quieter.
Controller is equipped with a hermetic HIGO plug.
The controller has the ability to connect a front light, a rear light and a Bluetooth module from our store's offer.
DISPLAY
The set includes KT-LCD4 or KT-LCD3.
Display with button panel for KT series programmable controllers.
See a detailed description of the functions and parameters - Click here.
THROTTLES
Choice of thumb, thumb SLIM, full or half lever.
PAS SENSOR
Enables activation of the pedal assist system.
A choice of PAS sensor (square) or ISIS, Hollowtech, Octalink
Mounting: PAS square - left, ISIS - right
BRAKE SENSOR
Choice of: A simple and economical brake activation sensor for mounting on each handle or brake handles with contactors.
The set includes 2 pcs of brake levers or 2 pcs of magnetic brake sensors and magnets.
M12 MOTOR AXIS ROTATION LOCK
A set of elements for securing the motor axis against turning in the holder. Designed for mounting with motors with an axle size M12.
It is a useful accessory that facilitates the installation of the engine and protects against possible failure.
CASE FOR CONTROLLER
Thanks to the case, we can easily mount the controller in the bicycle frame.
MECHANICAL PARTS SET FOR MOUNTING
NEOPRENE BAND
The neoprene frame cover allows you to effectively protect it from scratches caused by the chain slapping. Ideal for protecting the cable coming from the motor.
Output of the controller and HIGO connectors:
OUTPUT OF THE CONTROLLER SIGNALS
OUTPUT OF HIGO CONNECTORS
Attention:
This is a set with increased power. If you buy a battery from another source - use only with batteries with a CONTINUOUS (NOT momentary!) discharge current of 30A or more. This must be written CLEARLY in the technical data of the battery you are purchasing. If this information is missing (battery load in amperes) - do not use such a battery, it is a bad choice and you risk damaging the battery or fire!
Why our kits?
Feedback
It all began with the Nexun. We have tens of thousands of customers, users of our sets. We supply hundreds of workshops with electric bicycles in the country and abroad. We sell products that have been trusted by a large number of users. Wherever you will find any mention of us - these are positive opinions.
Experience
10 years of experience in the industry make us experts with proficiency in the field of electric vehicles. We will provide professional advice before buying, advise or dispel technical doubts. We will help with any problem and we will not leave anyone in need.
Reliability
We know that failure-free operation is crucial, which is why we do not assemble our kits based on small, overloaded components. We do not artificially raise the power of motors, adjusting their parameters to the limits of their durability. We do not have you with numbers, watts and other wonders, so we do not offer small-size controllers that are usually overclocked in other sets "on the Internet". We always select the elements of the set so that they have the appropriate reserve. We always design and build packages and batteries based on knowledge and experience. We do not overload the power supply - our batteries are built for many years of operation in mind.
The best sets
Our kits are the cheapest and the richest in important and essential parts. We do not add unnecessary things to our sets, we do not inflate the price and we do not sell unnecessary elements by force. We do not have hidden costs.
Spare parts
Check our offer. We are the only company to provide such a wide range of spare parts for our products. With us, your set will work much longer, because you have constant access to spare parts as well as advice and assistance in repairs. We conduct teaching through channels on YT, and Blog. You can also find us on FB and forums with electric vehicles.
Gallery
Examples of electric bike conversions using our Mxus 30H 1500W kit
The store guarantees repair or replacement of equipment for up to 24 months for consumers and up to 12 months for companies from the date of purchase. Complete the complaint form available on the store's website.
What is not covered by the warranty?
- Errors in installation or maintenance
- Thermal damage (overheating)
- Modification/interference in the device casing
- Modifications/changes inside the device
- Consumables (wear items): Hall sensors, power cable, axle, bearings, gear module and clutch.
- Mechanical damage caused by incorrect use of the product. e.g. damage from falls, excessive mechanical loads
