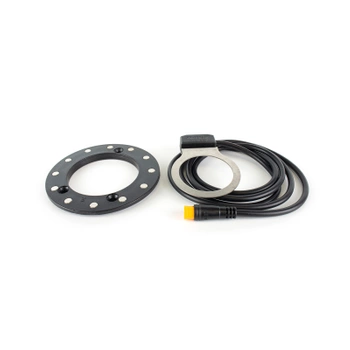

PAS sensor (ISIS, Hollowtech) version D2 waterproof HIGO connector
PAS sensor (ISIS, Hollowtech) version D2 waterproof HIGO connector
- Sensor with hermetic HIGO plug
PAS sensor (ISIS, Hollowtech, Octalink) D2
PAS SENSOR (ISIS, HOLLOWTECH)
Enables activation of the pedal assist system.
Sensor with hermetic HIGO plug.
How to mount a plate with magnets on the top of the crank?
It all depends on the model of the crank you have.
1. If the holes match - tighten the rotor with the magnets onto the crank with the bolts.
2. If your smallest crank sprocket has different holes than the plate with magnets, follow one of the tips depending on the crank model you have:
- stick the plate to the top of the crank with glue (hot or 2-component), remember to degrease the surface
- drill new holes on the disc with magnets according to your crank
- fix the plate with the strength of magnets only (flat tops of gears)
Pinout description when Higo plug is cut off:
1: Red [5V], Blue [signal]. Yellow [GND]
2: Red [5V], Blue [signal], Black [GND]
3: Brown [5V], Yellow [signal], Black [GND]
4: Red [5V], White [signal], Black [GND]
Cable length
1m
Number of magnets in the disc
12
Crank mount
ISIS, Hollowtech, Octalink
Connector
Yes
Waterproof Connector
Yes
Kompatybilność
KT
24 months for consumers, 12 months for companies
The store guarantees repair or replacement of equipment for up to 24 months for consumers and 12 months for companies from the date of purchase. Complete the complaint form available on the store's website.
What is not covered by the warranty?
- Errors in installation or maintenance
- Thermal damage (overheating)
- Modification/interference in the device casing
- Modifications/changes inside the device
- Mechanical damage caused by incorrect use of the product. e.g. damage from falls, excessive mechanical loads
