E-bike battery - Downtube 36V 10s9p DP9 23,4 - 31,5Ah
- Battery available in capacity
Gain a discount when buying products from the collection
In collection
Self-assembly bicycle battery - Down tube 36V 10s9p DP9
Battery 48V
Eco range
Standard range

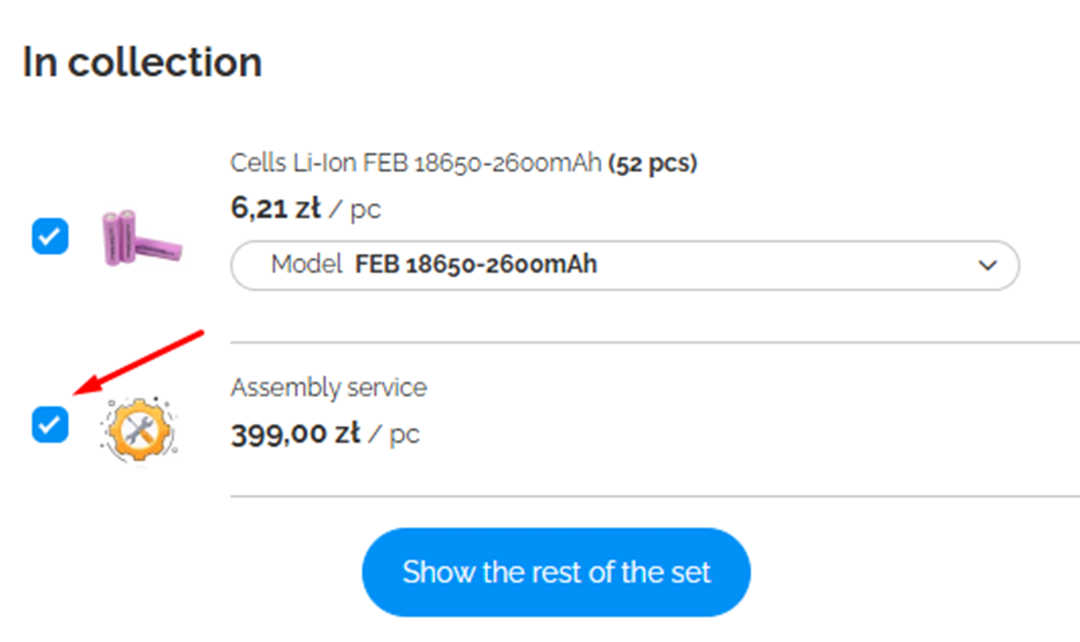

ASSEMBLY SERVICE
When placing an order, you can choose an additional battery assembly service. With this option, you will receive a fully assembled and tested battery, ready for immediate use in an electric bike or another device.
As part of the service:
- the cell pack is welded and properly secured,
- the BMS module is installed,
- the housing is mounted,
- the necessary wiring is completed,
- the entire unit undergoes a functionality test.
You receive a complete battery that only needs to be installed in your bike so you can enjoy riding — without the need for soldering or assembling the components yourself.
Advantages of installing the battery yourself:
You save up to 90EUR
You gain unique knowledge
You save in the future
The set includes:
Battery pack 10S 9P
Lithium-ion pack. It is the main element for the construction of the battery. After soldering the matching BMS, it is ready to work.
BMS
Battery management system (BMS) - it is a device that automates the entire process of using batteries. After connecting the appropriate charger to the BMS, it supervises its proper charging and discharging. It is an integral part of a properly built electric bike.
Lithium batteries (lithium ion, lithium polymer and others) are serviceable and require care and attention. They cannot be charged above 4.2V per cell or discharged below 3V per cell. To monitor them in everyday use, a device called BMS was invented.
ACCESSORIES FOR THE CONSTRUCTION OF A DOWN TUBE BATTERY
- red wire 12 AWG - 1m
- black wire 12 AWG - 1m
- red wire 16 AWG - 0,5m
- black wire 16 AWG - 0.6m
- epoxy glass, insulator, fiberglass - 12,5mm x 12,5mm
- thick thermo tube- 10,0mm 1 x 12cm
- medium thermo tube - 6,4mm 1 x 12cm
- connector xt60 set
- double-sided adhesive tape
- Kapton tape
- cable cover - 0,65 m
- rivet nuts and mounting screws - 4 szt
PADS
A set of 4 washers for mounting the POlly DP9 down tube case to a bicycle frame.

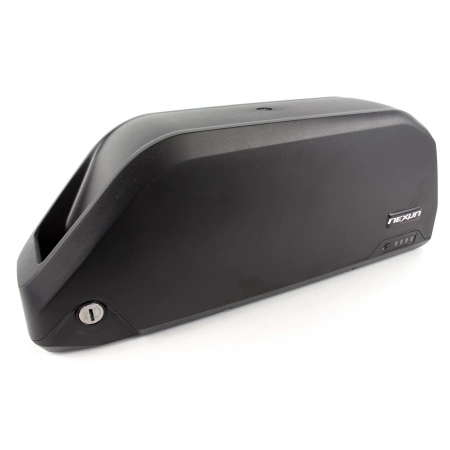

Battery case
The case is spacious enough to allow the use of all 91 cell brackets, and it can also fit a BMS inside..
Laser cut plates
LASER CUT PLATES
The package is welded on laser-cut pure nickel plates with a thickness of 8x0.15
Be sure to see - Akademia E-bike
Battery construction instructions 13s7p | Akademia E-bike
Installing the rail in the bicycle frame | Akademia E-bike
Attention
Do not connect this battery model to the Mxus 3K Turbo 3000W MTB kit.
You don't know if the battery case will fit your bike frame? Download the templates and print in a 1:1 scale. After printing, check whether both marked dimensions of 50 mm are consistent with reality, otherwise the casing could have been printed in a different scale and the dimensions will not match..
Download a battery template for fitting in a bicycle frame - Click here
Remember to connect the charger to the batteries in the correct order. ALWAYS first connect the charger to a 230V socket and then to the charging socket. DO NOT connect upside down. This may quickly damage both the charger and the BMS installed in your battery. The reverse connection causes the effect of sudden charging of the charger's output capacitors through the BMS socket. This is accompanied by the flow of huge current that can damage the plug, socket, BMS mosfets or even charger transistors.
The real capacity of the pack (available capacity) is always smaller than the rated capacity of the pack (rated capacity of the cells it contains). It is assumed that the finished battery based on the package will have approximately 10% less real capacity than the theoretical rated capacity. This is caused by many factors, such as a decrease in cell capacity under load or the BMS leaving unused capacity (discharging to the minimum cell voltage of approximately 2.7V) in order to extend the battery life.
If your BMS has a turn-on circuit (two white wires) and it is disconnected (the wires are not short-circuited), it must be connected (short-circuit the wires) to turn on the BMS
Where are down tube batteries installed?
Each battery in the nexun.pl online store is covered by a 24-month warranty for consumers and a 12-month warranty for companies.
The warranty covers:
- Cell damage
- BMS damage
- Capacity decline (over 15% per year)
The warranty does not cover:
- Errors in assembly that do not comply with the instructions or workmanship
- Improper maintenance
- Mechanical damage (cracked/broken casing, melted connection terminals, etc.)
- Changes in the product's operating characteristics depending on weather conditions (temperature)
- Water damage
To maximize battery life, use the following recommendations:
1. Fully charge the battery after each ride
2. Fully charge the battery every 3-4 weeks when you do not use it, e.g. winter break.
3. In the autumn and winter (temperature below +12*C), lithium-ion batteries have a lower capacity (by max. 30%) than in the summer, which results in a shorter range. This is normal. During this period, do not use the full power for the first 10-15 minutes of riding.
4. Do not charge the battery with a current higher than 3A.
