CONTROLLER KT36/48V 30A (square wave) DUAL MODE
The controller allows you to connect a front and rear lamp and a Bluetooth module.
This model of the KT controller is compatible with lamps and the BT module only from our store's offer.
The EBUS-5 bundle compatible with the controller - Click here.
Upgraded version of the KT controller
MOSFETs (power transistors)
5V Power Module
Motor Thermal Protection
Quick Speed (25 km/h) and Power (250W) Limit
Bluetooth (BL)
Reverse Gear
KT SQUARE WAVE CONTROLLER
High-performance controller for electric bikes with a voltage of 36/48V and a maximum current of 30A. Thanks to the block wave signal, it provides dynamic and responsive acceleration – ideal for users who expect immediate motor reaction. It works with motors both with and without Hall sensors. It also features a connector for connecting bicycle lighting.

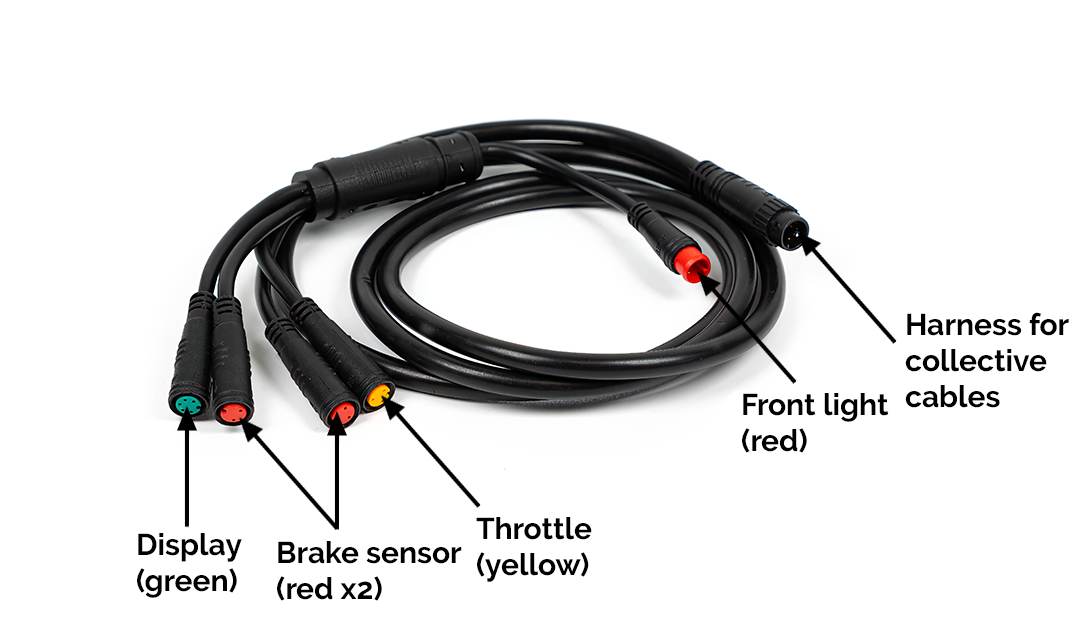

We can connect to the controller:

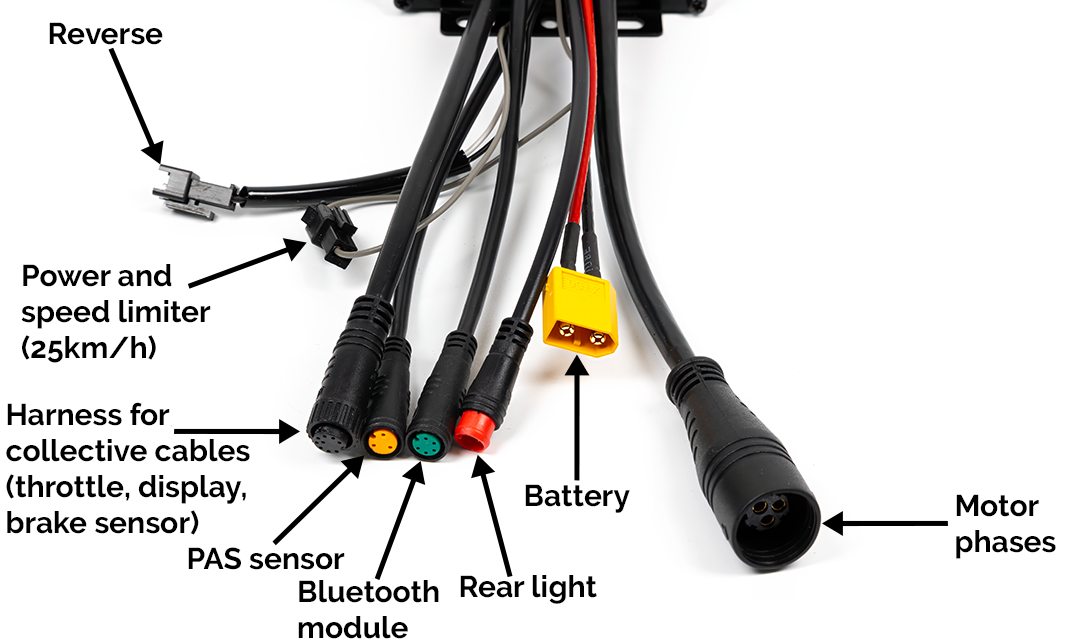

CONTROLLER SIGNAL OUTPUTS
SIGNAL OUTPUT
Front light
Rear light
Bluetooth module
Comments
After connecting the controller to the KT-LCD3 or KT-LCD8s display, it can be programmed for a specific installation. It allows you to activate assistance, limit up to 25 km/h, limit current and much more. The display is optional, the controller also works without it, but then has basic functionality.
On sine (and vector) controllers, the motor develops a speed approximately 8% lower than indicated in the motor data, but in return it achieves 8% higher torque.
DO NOT use with BIONX motors and electric scooter motors. These engines are not compatible with KT controllers and may lead to a serious failure.
The controller MUST NOT operate mounted in a plastic box if the box does not have ventilation holes. Make at least 4-8 holes with a diameter of 15 mm in the walls of the box and a water drainage hole. The controller is splash-proof and any water getting into the box will not harm it.
The store guarantees repair or replacement of equipment for up to 24 months for consumers and 12 months for companies from the date of purchase. Complete the complaint form available on the store's website.
What is not covered by the warranty?
- Errors in installation or maintenance
- Thermal damage (overheating)
- Modification/interference in the device casing
- Modifications/changes inside the device
- Mechanical damage caused by incorrect use of the product. e.g. damage from falls, excessive mechanical loads
