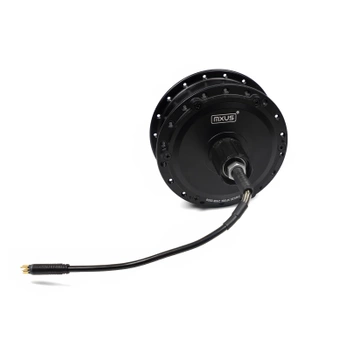

Mxus XF08C 250W rear electric motor with cassette
Mxus XF08C 250W rear electric motor with cassette
Mxus XF08C 250W rear electric motor with cassette
Mxus XF08C 250W rear electric motor with cassette

Mxus XF08C 250W rear electric motor with cassette

  • Original MXUS motor. It is part of a 250W conversion kit. One of the smallest gear motors.
Variant
137,74 €
incl. VAT / pc
Regular price / pc
of
You can also buy using:
14 days for easy returns
Safe shopping
After purchase you will receive 59.50 pts.
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from €11.57 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order €11.57 are for free.
Free delivery includes parcel delivery to a parcel machine
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

Mxus XF08C 250W rear electric motor with cassette

Motor Mxus XF08C 250W
Nominal power: 250W by 48V
Maximal continuous power: 250W
Supply voltage: 36-48V
Speed
Speed: ~7,2RPM/V, about 1km/h for every 1V of power supply
KT Sinus
We recommend SINUS controllers, thanks to which the motor will heat up the least at the highest power

What should you know before purchasing?

This is the smallest and weakest motor with a rated power of 250W intended only for driving with assistance on relatively flat routes. It won't cope if you use the throttle without power steering or if you want to cover hilly, mountainous routes, including asphalt. We recommend choosing more powerful motor so that the bike can cover any type of route.

ELECTRIC MOTOR MXUS XF08C

HERMETIC CONNECTION

Comments:

In sets with a nominal power of 250/350W, there is no need to cut or solder the connectors. The currents flowing in such an installation are not high and factory connectors can be used. Our controllers and this motor have compatible connectors - just connect everything in the set with matching connectors and the set is ready to drive

Brand
Hall sensor
Yes
Additional Hall speed sensor
Yes
Length of the power wire
15cm + przedłużka 70cm
Maximum continuous current
14A
Rated power
250W
Cassette assembly
7-11s (dla 7s wymagany dystans 3mm)
Installation of the brake disc
for 6 screws
Supply voltage
36-48V
Version
5x13
Motor axis
M12
Fork spacing
135/145mm
Motor type
geaed, for 36 spokes
Weight
3,1 kg
24 months for consumers, 12 months for companies

The store guarantees repair or replacement of equipment for up to 24 months for consumers and up to 12 months for companies from the date of purchase. Complete the complaint form available on the store's website.



What is not covered by the warranty?

- Errors in installation or maintenance
- Thermal damage (overheating)
- Modification/interference in the device casing
- Modifications/changes inside the device
- Consumables (wear items): Hall sensors, power cable, axle, bearings, gear module and clutch.
- Mechanical damage caused by incorrect use of the product. e.g. damage from falls, excessive mechanical loads
