Lithium-ion cells EVE ICR18650-26V 2550mAh
Lithium-ion cells EVE ICR18650-26V 2550mAh
Lithium-ion cells EVE ICR18650-26V 2550mAh 7,65A
The EVE ICR18650 26V lithium-ion cell with a capacity of 2550mAh is a reliable power source for e-bikes and other devices requiring stable performance. With a maximum discharge current of 7.65A and a recommended load of 5A in battery packs, the cell ensures efficiency and safety during operation. Its compact 18650 format makes it ideal for constructing efficient and durable battery packs.
Cell Voltage
Maximum Charging Voltage: 4.20V
Cell Capacity
Nominal Capacity: 2,55 Ah
EVE ICR18650-26V 2550mAh
Lithium-ion cells by EVE
Informatio
Factory-new cells.
The option to charge and balance cells before shipment is available.
Cell Balancing Service - Click here
Documentation
Datasheet - Click here

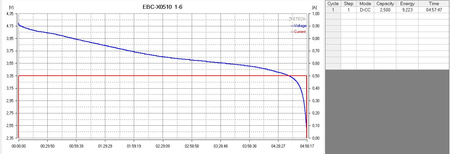

Cell capacity test EVE ICR18650-26V 2550mAh
Brand
Warranty
E-cigarettes
No
Power tools
No
Maximum working temperature
50st
Maximum charging voltage
4,20V
Maximum discharge current
7,65A
Maximum discharge current in batteryMore
The discharge current when working in packs (a battery composed of many 18650 or 21700 cells) is lower than the current specified in the catalog note for one cell. This is due to the fact that many cells in the pack heat up from each other. The increased and uneven temperature of the pack causes rapid degradation of the cell and such a battery may not survive even one season. For the safety and long life of your battery, always design it safely based on the maximum operating current in the pack. Do not overload the cells, do not build a pack based on the maximum current for 1 cell - otherwise your pack will have a very short lifespan.
5A
Maximum charging current
2,5A
Rated voltage
3,6V
Pojemność minimalna
2500mAh
Rated capacity
2550mAh
Internal resistance
18 mΩ
State
New
Standard charging current
1,27A
Technology
Li-ion
Cells type
18650
Wysokoprądowe
Nie
Gwarancja na Ogniwa nowe 2 lata
Gwarancja na Ogniwa nowe 2 lata
