KT36/48ZWSRTD Controller 36–48V 14A (block wave) DUAL MODE
KT36/48ZWSRTD Controller 36–48V 14A (block wave) DUAL MODE
Controller with Higo main wiring harness for KT controller
This KT controller model is not compatible with lights or the BT module.
EBUS-4 harness compatible with the controller – Click here.

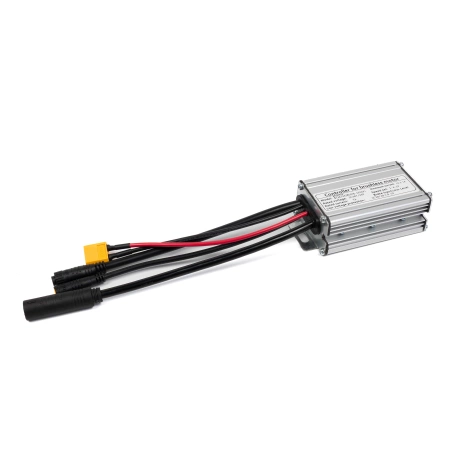

KT BLOCK WAVE CONTROLLER
Efficient controller for electric bikes with a voltage of 36/48V and a maximum current of 14A. Thanks to the block wave signal, it provides dynamic, immediate acceleration — ideal for riders expecting instant motor response. The controller is equipped with waterproof HIGO connectors.
DUAL MODE
This is a controller feature that allows operation with both motors equipped with Hall sensors and sensorless motors. This means that one controller can automatically adapt to the motor type, ensuring stable drive operation. Thanks to Dual Mode, the controller recognizes signals from the Hall sensors, allowing smooth starts and quiet operation at low speeds. In case of sensor failure or if the motor does not have them, the controller automatically switches to sensorless mode, so the vehicle can continue to run.
CONTROLLER SIGNAL OUTPUTS
Documentation
User manual – Click here.
The store guarantees repair or replacement of equipment for up to 24 months for consumers and 12 months for companies from the date of purchase. Complete the complaint form available on the store's website.
What is not covered by the warranty?
- Errors in installation or maintenance
- Thermal damage (overheating)
- Modification/interference in the device casing
- Modifications/changes inside the device
- Mechanical damage caused by incorrect use of the product. e.g. damage from falls, excessive mechanical loads
