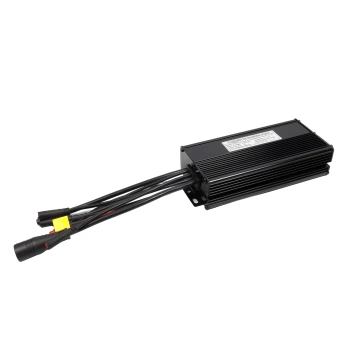

KT36/48SVPRCLDB 36–48V 35A Sinus Controller – Black
KT36/48SVPRCLDB 36–48V 35A Sinus Controller – Black
The KT36/48SVPRCLDB is a modern and high-performance controller designed for electric bicycles equipped with 36V or 48V systems. Thanks to advanced sine wave technology, it ensures exceptionally smooth, quiet, and comfortable motor operation, enhancing the riding experience both during everyday commuting and on more demanding routes.
Compared to traditional square wave controllers, the sine wave version:
- significantly reduces motor noise,
- provides smoother starts and acceleration,
- improves the overall performance of the drive system,
- increases energy efficiency,
- reduces wear on electrical and mechanical components.
The controller supports both 36V and 48V systems and delivers a maximum operating current of up to 35A, ensuring strong performance and stable operation even under higher loads.
The KT36/48SVPRCLDB features a durable black housing that effectively protects the electronics from demanding operating conditions. Its design focuses on reliability, longevity, and seamless integration with KT-based e-bike systems.
This controller is an excellent choice for riders looking for a high-quality solution that delivers smooth motor operation, improved energy efficiency, and enhanced riding comfort.

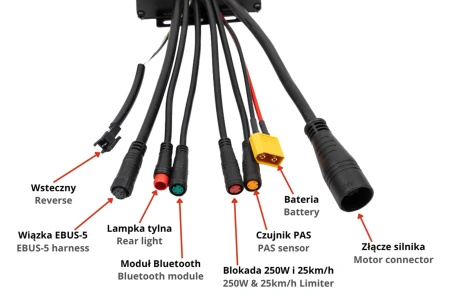

SIGNAL CONNECTIONS
The controller supports connection of the following components:
- Throttle
- PAS (Pedal Assist Sensor)
- Display
- Brake Sensor
- Front Light
- Rear Light
- Bluetooth Module
- Speed Limiter (25 km/h) and Power Limiter (250 W)
- Reverse Function (Reverse Gear)
Upgraded version of the KT controller
MOSFETs (power transistors)
5V Power Module
Motor Thermal Protection
Quick Speed (25 km/h) and Power (250W) Limit
Bluetooth (BL)
Reverse GearNotes
When connected to a KT-LCD3 display, the controller can be programmed and configured for a specific e-bike system. This allows users to enable pedal assistance, set a 25 km/h speed limit, adjust current limits, and access many other advanced settings. The display is optional—the controller can also operate without it, although only basic functionality will be available.
With sine wave (and vector) controllers, the motor typically achieves approximately 8% lower top speed than its nominal specification. In return, it delivers approximately 8% higher torque, resulting in better acceleration and climbing performance.
Do NOT use with BIONX motors. These motors are not compatible with KT controllers and may suffer serious damage if connected.
If you intend to operate the controller near its maximum power output, ensure adequate cooling. For example, do not install it in a completely enclosed space without airflow. The controller can be mounted outside of an enclosure; however, it should always be installed with the cables facing downward to prevent water from entering the housing through the wiring.
The controller features motor temperature monitoring. To activate this function, the motor must be equipped with an NTC 10k temperature sensor.
The store guarantees repair or replacement of equipment for up to 24 months for consumers and 12 months for companies from the date of purchase. Complete the complaint form available on the store's website.
What is not covered by the warranty?
- Errors in installation or maintenance
- Thermal damage (overheating)
- Modification/interference in the device casing
- Modifications/changes inside the device
- Mechanical damage caused by incorrect use of the product. e.g. damage from falls, excessive mechanical loads
