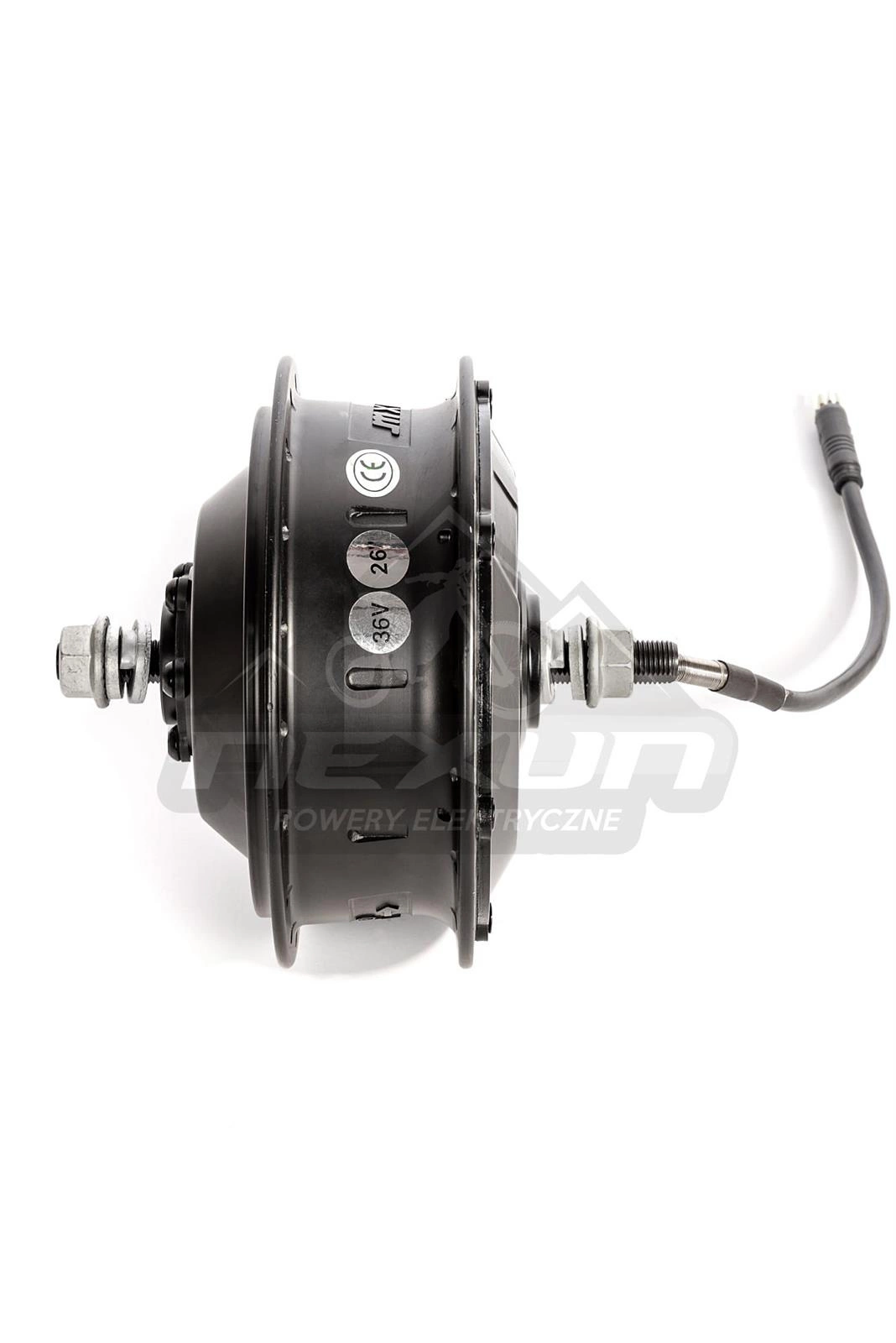

MXUS XF15F 350W front motor

 What You Should Know Before You Buy The Mxus XF15C 350W

• The motor is recommended for structures built for assisted urban or trekking riding. The motor is light, it has gears and a clutch making it frictionless. If you intend to build a bike that you intend to ride off road or asphalt routes or you are interested in a sporty driving experience - then choose the Mxus 30H or even the Mxus 3K, it will work MUCH better (it will not heat up excessively)
• It allows for the construction of the lightest and most mobile drive sets
• The best controller should be 15-17A with a voltage of 36 or (better) 48V (We highly recommend SINUS controllers) so that the motor will heat the least at the highest power
• Although the motor has as much as 350W of rated power and is larger and more durable than its smaller 250W version, we recommend powering it from a controller with a maximum current of 15-17A. Due to the fact that the controller will be 250W, the motor itself will have a large reserve of rated power, which will result in high work efficiency, less heating of the motor and a much longer mechanical life.

Technical data:

Motor type: geared with clutch, under 36 spokes, front
Motor mounting distance: 100 / 110mm
Maximum power: 250-1000W
Supply voltage: 36-48V
Maximum continuous current: 20A
Speed for the 26 "wheel: about 35 km / h
motor weight: 3.8 kg
Hall Sensor: yes

Additional Hall sensor for speed measure:yes
Installation of the brake disc: 6 bolts

To get a ready wheel, add the motor, rim, spokes and lacing.

Remember that we entrust the lacing to a professional bicycle service - therefore the execution of such an order may take an additional 1-5 business days.

Tip:

Remember that even the best laced wheel requires check the spokes after driving a certain distance. Usually, the first tightening of the spokes is carried out after the first 50-200 km depending on the driving style. If the spokes are starting to rattle, it is a sign that they are on the wheel and should be finally correct.

What is not covered by the warranty?
Does not include in the case of:
- Installation or maintenance errors
- Thermal damage (overheating)
- Modification / interference with the housing of the device
- Modifications / changes inside the device
