Bracket 1x Li-Ion 21700 (honeycomb) 1p Battery Case Holder
- Bracket 1x Li-Ion 21700 (honeycomb) 1p Battery Case Holder
Bracket 1x Li-Ion 21700 (honeycomb) 1p Battery Case Holder
BRACKET HONEYCOMB

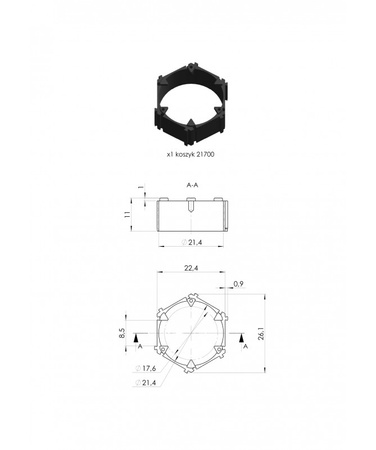

Basket 1x21700 honeycomb
To attach the cell you need 1 pcs, top + bottom.
The honeycomb baskets offer better space utilization than classic rectangular baskets.
They can be combined in any combination.
Notes:
When designing your battery pack, buy at least 20% of 1p brackets, as honeycomb brackets requires more irregular package shapes, and these cannot be made only from 3p / 6p brackets. Alternatively, select more largerrackets and cut them to the necessary dimensions if necessary.
Printable bracket template - use it to simulate the shape and dimensions of the accumulator under construction. Note: print in a 1:1 scale, after printing, check that both marked 50mm dimensions are true, otherwise the brackets may be printed in a different scale and the dimensions will not match.
TEMPLATE
