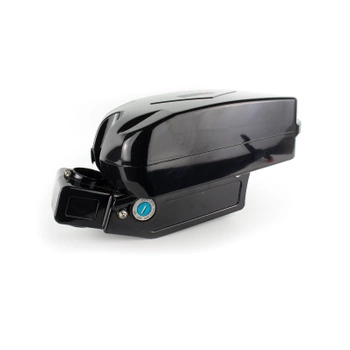

Battery Case FROG for 48V battery
- Battery case FROG mounted behind the saddle. It can hold up to 60pcs 18650 cells.
Write your opinion
Battery Case FROG for 48V battery
SET INCLUDES
SAFE LOCK
Lock, use to lock the battery on the frame and turn off and on the battery power.
RCA CHARGER PORT
The charge current of this socket up to 2A.
BATTERY INSTALL PLATE
Battery install plate. This plate will be installed on the battery when we ship. You can take it off by the key and install it on the bike frame by screw. Then put the battery on it.
BATTERY LEVEL LIGHT
1 Red 2 Green - 100%
1 Red 1 Green - 70%
1 Red 0 Green - 30%
1 Red 1 Green - 70%
1 Red 0 Green - 30%
Technical data:
| PARAMETR | UNIT |
|---|---|
| Charge indicator for installation: | 48V |
| Capacity: | 40 Cells 18650 |
| Recommended configuration: | 13s3p |
| Maximum discharged current supported: | 20A |
| Maximum supported charging current: | 2A |
| Charging socket: | RCA/CINCH |
Charge indicator for installation
48V
