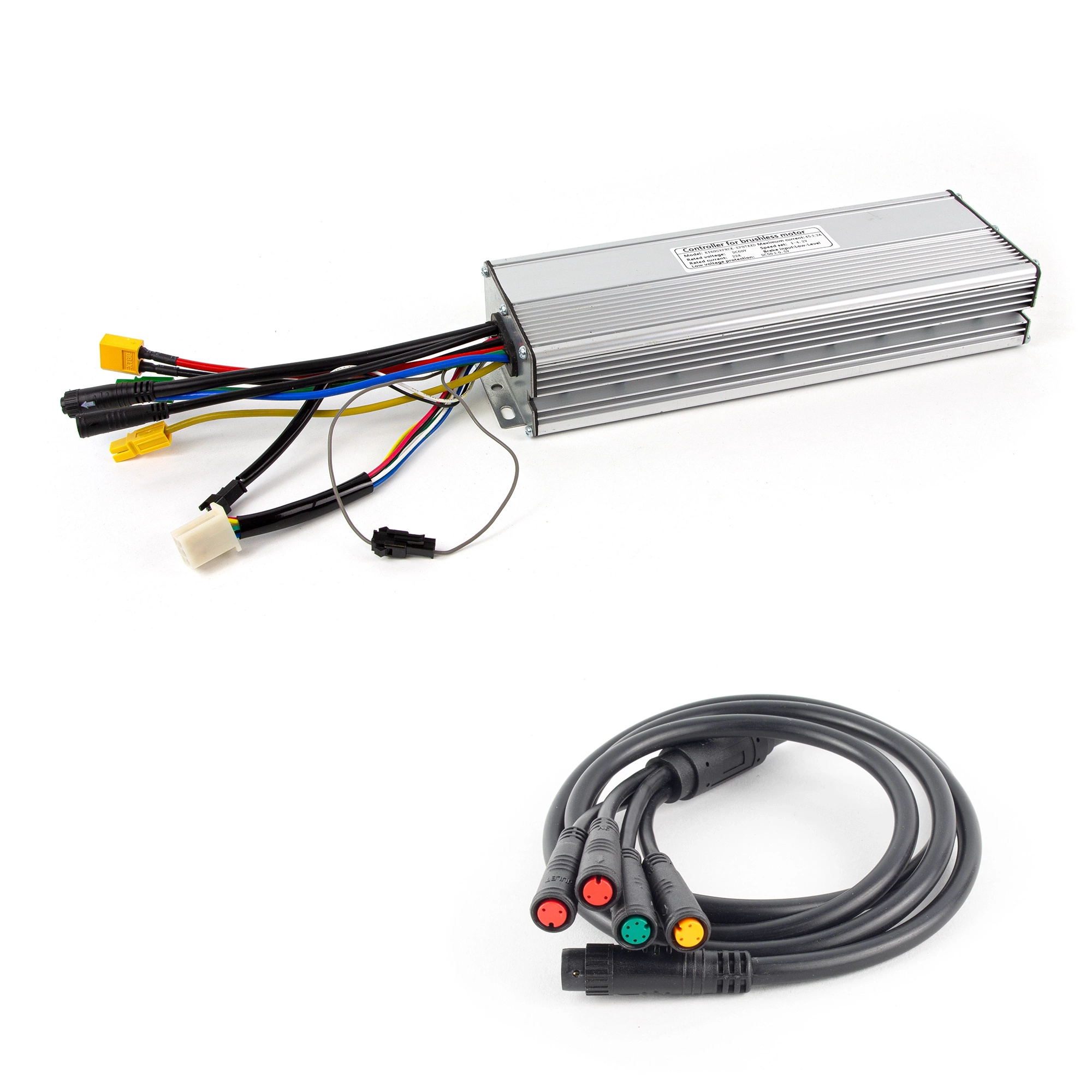

Controller KT60V 45A (sinus) with a HIGO
- Controller type: SINUS Operating voltage: 60V (LiPo / LiIon 16s batteries, Maximum operating voltage 67.2V Maximum current: 45A Nominal power: 1500W Maximum power: 3000W Power cut-off: 50V + -1V
Save by buying more
Conversion kit MTB 60V 3000W MXUS 3K Turbo
Controller KT60SVPRCK 60V 45A (sinus) with HIGO
Controller with the Higo collective wiring harness (connection of the throttle, brake sensor and display to the KT controller)
CONTROLLER KT SINUS
Compared to classic block controllers, it allows for a smoother ride, reduces energy consumption and makes the engine quieter.
Controller is equipped with a hermetic HIGO plug.
SIGNAL OUTPUT
SIGNAL SEPARATOR FROM THE KT CONTROLLER
Signal separator from the controller with a total length of 119 cm.
The cable ends with Higo waterproof connectors
SIGNAL OUTPUT
Notes
The controller, when connected to the KT-LCD3 display, allows you to program it for a specific installation. It allows you to start power steering, limit up to 25km / h, current limitation and much more. The display is optional, the controller also works without it, but then it has the basic functionality.
On sine (and vector) controllers, the motor develops a speed that is approximately 8% lower than indicated by the motor data, but instead achieves 8% more torque.
DO NOT use with BIONX engines. These motors are not compatible with KT controllers and can lead to a serious malfunction.
If you intend to use it at power close to the maximum - provide it with cooling, i.e. do not close it in boxes without airflow (the controller can work outside the box, but remember to mount it with the wires downwards - water will not run into them inside. ) or install a thermal protection (thermal switch at 80 degrees).
The controller has the function of monitoring the motor temperature. To activate it, you must have an NTC10k temperature sensor in the motor.
Configuration you will find here - Click here.
